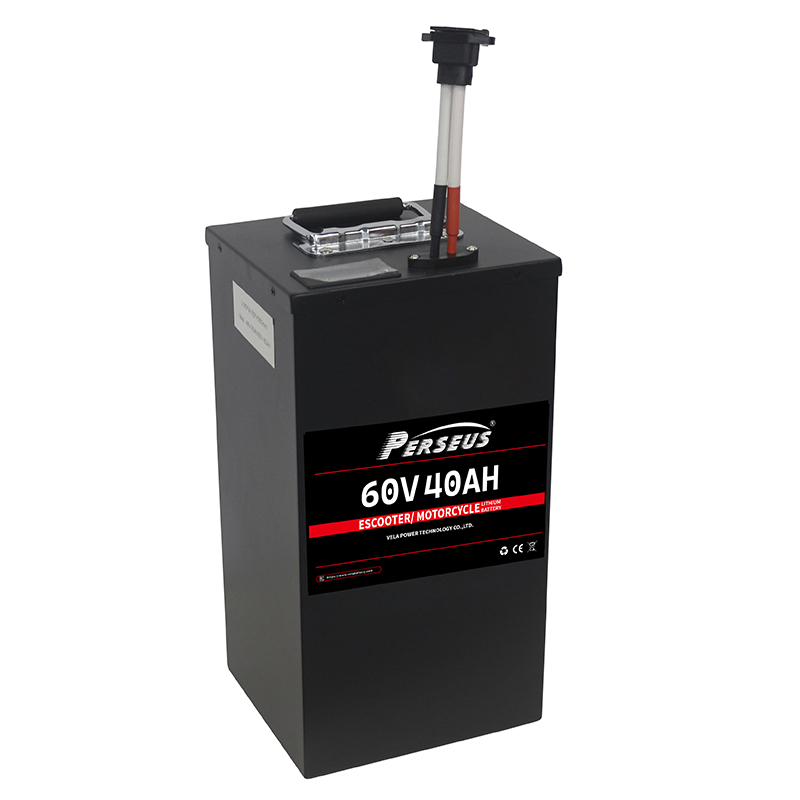

Escooter/ Motorcycle Battery 60V 40Ah Lithium Battery Pack

Categories 60V Scooter Lithium Battery, Lithium Power Battery, Scooter/Motorcycle Lithium Battery

Share:

Description

Description

ELECTRICAL SPECIFICATIONS
Nominal Voltage	61.2V
Nominal Capacity	40Ah
Energy	2448Wh
Series and Parallel Connection	17S1P
Resistance	≤40 mΩ
Cycle Life	≥800 cycles @80%DOD
Motor Power Range	800-2000W
LCD Screen	Included

MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	180155325mm
Weight	Approx.18KG
Chemistry	NCM
Cell Type	Prismatic Cell
Case Material	Metal

CHARGE & DISCHARGE SPECIFICATIONS
Standard Charge Current	≤8A
Max Charge Current	≤20A
Continuous discharge current	≤ 40A
Pulse discharge current	≤80A
Over-discharge protection cut-off voltage	51V
Over-charge protection cut-off voltage	71.4V

TEMPERATURE SPECIFICATIONS
Discharge Temperature	-4 to 140 ºF (-20 to 60 ºC)
Charge Temperature	32 to 113 ºF (0 to 45 ºC)
Storage Temperature	77±3 ºF (25±3ºC)

COMPLIANCE SPECIFICATIONS
Certifications	CE
	RoHs
	UN38.3

High Quality Lithium Motorcycle Battery

Features of 60 volt battery for electric scooter :
1. Lighter weight, smaller size.
2. 60V motorcycle lithium battery can be customized. Install easily.
3. High capacity lithium ion battery, extremely.safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Maintenance-free and no acid or water for maintenance in usage.
7. Environmentally friendly non-toxic, non-contaminating, no rare metal.
8. Large capability and long life for all high power output applications.
9. Low self-discharge and good discharge performance at low temperature.
10.Optional Bluetooth function, APP can monitor the battery voltage, capacity status.
