Description
product description
Gel batteries use gel electrolytes, reducing the risk of spillage and evaporation due to corrosion. Due to the gelled solution can hold their charge for a longer time, so the gel battery have a longer service life than the traditional battery. And it can withstand extreme ranges in temperature. Nowadays it widely used in water pumping, solar system, UPS system, golf cars etc.
Features
Best suited for Deep cycle applications
Maintenance free
vibration-resistant
Lowest cost-per-month
Lowest cost-per-cycle
Good low temperature performance
Good recovery in deep discharge characteristics
Completely leak-proof and splash-proof, easy to install in almost any position
Maintenance free
vibration-resistant
Lowest cost-per-month
Lowest cost-per-cycle
Good low temperature performance
Good recovery in deep discharge characteristics
Completely leak-proof and splash-proof, easy to install in almost any position
Application
UPS system
Solar and wind systems
Marine Equipment
Medical Equipment
Military Equipment
Emergency lighting
Commercial deep cycle applications
Power plant
Telecommunications
Golf cars
Wheelchair
Water pumping
Solar and wind systems
Marine Equipment
Medical Equipment
Military Equipment
Emergency lighting
Commercial deep cycle applications
Power plant
Telecommunications
Golf cars
Wheelchair
Water pumping
General Technical Specifications
| Model | Nominal Voltage (V) |
Capacity (AH) |
Internal Resistance (mOhm) |
Dimensions（mm/in） | Terminal | Weight ±4%(Kg) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | ||||||||||||
| mm | in | mm | in | mm | in | mm | in | Type | Position | Kg | Lbs | ||||
| FPG12180 | 12 | 18 | 16 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T8 | C | 5 | 11.02 |
| FPG12240 | 12 | 24 | 20 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | T8 | C | 7.4 | 16.31 |
| FPG12280 | 12 | 28 | 15 | 8 | 17.64 | ||||||||||
| FPG12280A | 12 | 28 | 14 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 175 | 6.89 | T8 | C | 9 | 19.84 |
| LFPG6100 | 6 | 100 | 3.3 | 194 | 7.6 | 170 | 6.7 | 205 | 8.1 | 205 | 8.1 | T9 | A | 15.8 | 34.83 |
| LFPG6190 | 6 | 190 | 2.2 | 243 | 9.6 | 187 | 7.4 | 253 | 10 | 276 | 10.9 | T11 | A | 31 | 68.34 |
| LFPG1233 | 12 | 33 | 11 | 195 | 7.7 | 130 | 5.1 | 155 | 8.9 | 155 | 8.9 | T9 | C | 10.2 | 22.49 |
| LFPG1240 | 12 | 40 | 9.5 | 197 | 7.8 | 165 | 6.5 | 170 | 6.7 | 170 | 6.7 | T9 | D | 12.5 | 27.56 |
| LFPG1255 | 12 | 55 | 7 | 229 | 9 | 138 | 5.4 | 208 | 8.2 | 208 | 8.2 | T9 | C | 17 | 37.48 |
| LFPG1265 | 12 | 65 | 6.6 | 350 | 3.8 | 167 | 6.6 | 179 | 7 | 179 | 7 | T9 | C | 21 | 46.30 |
| LFPG1260 | 12 | 60 | 7.7 | 22 | 48.50 | ||||||||||
| LFPG1270 | 12 | 70 | 7 | 260 | 10.2 | 168 | 6.6 | 211 | 8.3 | 211 | 8.3 | T9 | C | 24 | 52.91 |
| LFPG1280 | 12 | 80 | 6.5 | 306 | 12.05 | 169 | 6.65 | 211 | 8.3 | 211 | 8.3 | T9 | C | 27.5 | 60.63 |
| LFPG1290 | 12 | 90 | 5.8 | 306 | 12.05 | 169 | 6.65 | 211 | 8.3 | 211 | 8.3 | T9 | C | 28.5 | 62.83 |
| LFPG1290H | 12 | 90 | 5.4 | 330 | 13 | 171 | 6.7 | 214 | 8.4 | 214 | 8.4 | T9 | C | 31 | 68.34 |
| LFPG12100 | 12 | 100 | 5 | 330 | 13 | 171 | 6.7 | 214 | 8.4 | 214 | 8.4 | T9 | C | 32 | 70.55 |
| LFPG12110 | 12 | 110 | 5.2 | 330 | 13 | 171 | 6.7 | 225 | 8.86 | 225 | 8.86 | T9 | C | 33.5 | 73.85 |
| LFPG12120 | 12 | 120 | 4.4 | 409 | 16.1 | 176 | 6.9 | 225 | 8.9 | 225 | 8.9 | T11 | C | 36.5 | 80.47 |
| LFPG12140 | 12 | 134 | 4.2 | 342 | 13.5 | 172 | 6.8 | 280 | 11 | 280 | 11 | T11 | C | 42.5 | 93.70 |
| LFPG12150 | 12 | 150 | 3.9 | 485 | 19.1 | 172 | 6.8 | 240 | 9.4 | 240 | 9.4 | T11 | C | 44 | 97.00 |
| LFPG12180 | 12 | 180 | 3.6 | 494 | 19.4 | 206 | 8.1 | 209 | 8.2 | 209 | 8.2 | T11 | C | 55 | 121.25 |
| LFPG12160 | 12 | 160 | 3.2 | 530 | 20.8 | 207 | 8.15 | 214 | 8.43 | 214 | 8.43 | T11 | C | 53 | 116.84 |
| LFPG12200 | 12 | 200 | 3.3 | 522 | 20.6 | 238 | 9.4 | 218 | 8.6 | 218 | 8.6 | T11 | C | 66 | 145.51 |
| LFPG12250 | 12 | 250 | 2.9 | 521 | 20.5 | 269 | 10.6 | 220 | 8.7 | 220 | 8.7 | T11 | E | 75 | 165.35 |
| LFPG1250FT | 12 | 50 | 7.2 | 277 | 10.91 | 106 | 4.17 | 221 | 8.7 | 221 | 8.7 | T9 | E | 17 | 37.48 |
| LFPG12100FT | 12 | 100 | 5.4 | 506 | 19.9 | 110 | 4.3 | 224 | 8.8 | 239 | 9.4 | T9 | E | 31 | 68.34 |
| LFPG12150FT | 12 | 150 | 4 | 551 | 21.7 | 110 | 4.3 | 287 | 11.3 | 287 | 11.3 | T11 | E | 47 | 103.62 |
| LFPG12180FT | 12 | 180 | 3 | 546 | 21.5 | 125 | 4.9 | 317 | 12.5 | 323 | 12.7 | T11 | E | 57 | 125.66 |
| CFPG2100 | 2 | 100 | 0.9 | 171 | 6.7 | 72 | 2.8 | 206 | 8.1 | 209 | 8.2 | T10 | A | 6 | 13.23 |
| CFPG2150 | 2 | 150 | 0.7 | 171 | 6.7 | 102 | 4 | 206 | 8.1 | 211 | 8.3 | T10 | A | 8.5 | 18.74 |
| CFPG2200 | 2 | 200 | 0.95 | 173 | 6.8 | 109 | 4.3 | 330 | 8.3 | 364 | 14.3 | T10 | G | 14 | 30.86 |

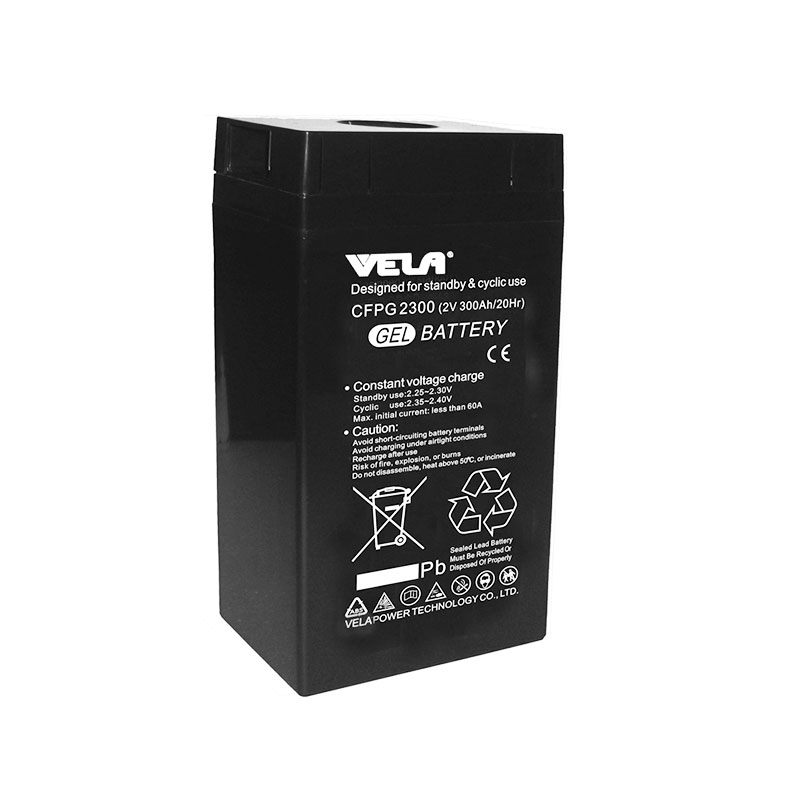

| CFPG2300 | 2 | 300 | 0.8 | 171 | 6.7 | 151 | 5.9 | 330 | 8.3 | 364 | 14.3 | T10 | G | 19.5 | 42.99 |
| CFPG2400 | 2 | 400 | 0.65 | 210 | 8.3 | 176 | 6.9 | 330 | 8.3 | 367 | 14.4 | T10 | H | 26.5 | 58.42 |
| CFPG2500 | 2 | 500 | 0.55 | 241 | 9.5 | 171 | 6.7 | 330 | 8.3 | 365 | 14.4 | T10 | H | 31.5 | 69.45 |
| CFPG2600 | 2 | 600 | 0.5 | 302 | 11.9 | 175 | 6.9 | 330 | 8.3 | 367 | 14.4 | T10 | H | 38 | 83.78 |
| CFPG2800 | 2 | 800 | 0.4 | 410 | 16.1 | 175 | 6.9 | 330 | 8.3 | 367 | 14.4 | T10 | I | 53.5 | 117.95 |
| CFPG21000 | 2 | 1000 | 0.3 | 475 | 18.7 | 175 | 6.9 | 330 | 8.3 | 367 | 14.4 | T10 | I | 64 | 141.10 |
| CFPG21500 | 2 | 1500 | 0.22 | 400 | 15.7 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | T10 | J | 97 | 213.85 |
| CFPG22000 | 2 | 2000 | 0.2 | 490 | 19.3 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | T10 | K | 130 | 286.60 |
| CFPG23000 | 2 | 3000 | 0.13 | 710 | 28 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | T10 | K | 198 | 436.52 |
| CFPG2200S | 2 | 200 | 0.9 | 206 | 8.1 | 103 | 4.1 | 355 | 14 | 390 | 15.4 | T10 | G | 15.5 | 34.17 |
| CFPG2250S | 2 | 250 | 0.8 | 206 | 8.1 | 124 | 4.9 | 355 | 14 | 390 | 15.4 | T10 | G | 19 | 41.89 |
| CFPG2300S | 2 | 300 | 0.75 | 206 | |||||||||||
